How to Fix P0171 Code Po171 Buick System Too Lean Bank 1
2025-11-22

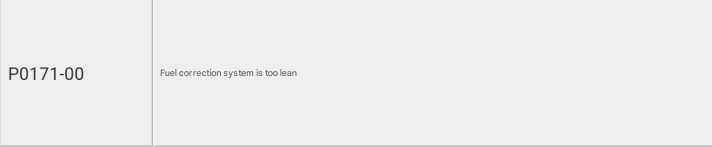

Fault Symptom and Code: P0171 Buick LaCrosse
The vehicle in question was a 2015 Buick LaCrosse with an LLU 1.6L engine, clocking 118,542 miles. The owner reported a check engine light and slight engine shaking. When I scanned it, the trouble code was P0171—Fuel Trim System Too Lean, which translates to “system too lean bank 1” in plain terms. This means the engine is running with too much air and not enough fuel in one of its cylinder banks—an issue that can also plague models like the P0171 Buick Regal, P0171 Buick Lacrosse, or P0171 Buick Enclave.
Troubleshooting P0171 Buick: Potential Causes
When facing P0171 Buick, there are several likely culprits. For this LaCrosse, I considered:
- Intake manifold leaks
- Stuck-open charcoal canister solenoid
- Low fuel pressure
- Faulty manifold pressure sensor
- Clogged fuel injectors
- Incorrect coolant temperature sensor signal
- Faulty oxygen sensor signal
These causes are common across many Buicks, whether you’re dealing with a P0171 Buick Encore or a P0171 Buick Lesabre.
Diagnosing the Issue: Data Stream Analysis
To get to the root of the problem, I started by pulling the data stream. Here’s what I found:
- The coolant temperature signal was normal.

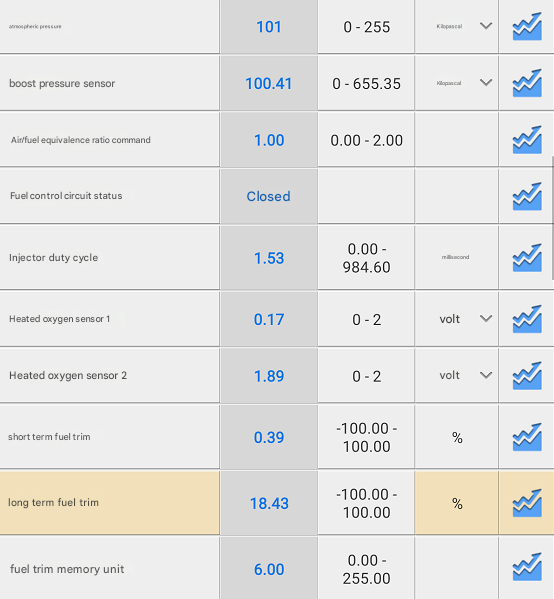

- Long-term fuel trim was +18%—higher than ideal, indicating the engine was compensating for a lean condition.

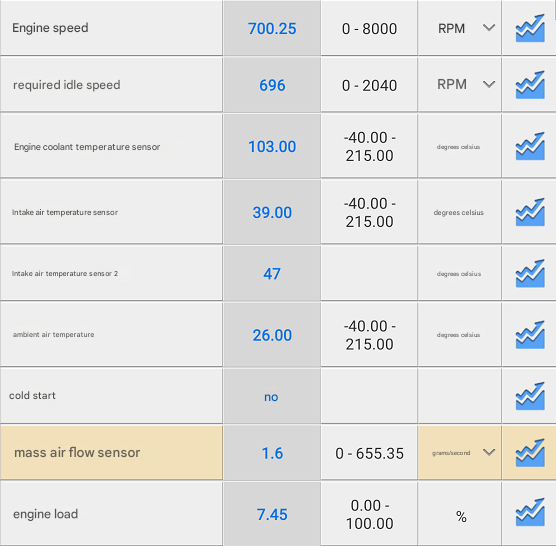

- Mass Airflow (MAF) signal was only 1.6 g/s—way too low. For a Buick (especially a 1.6L engine), the theoretical MAF should be around 2.5 g/s.
American cars like Buicks typically have higher MAF readings, so this was a red flag.

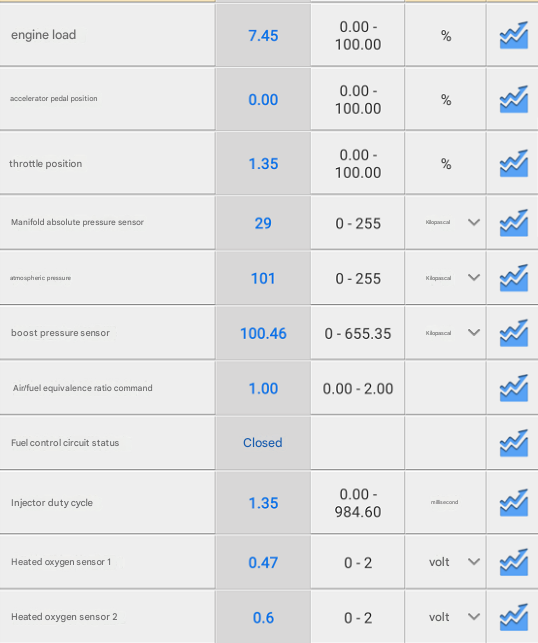

A low MAF signal can mean two things: a faulty MAF sensor or an air leak downstream of the throttle body. Since this LaCrosse also has a manifold pressure sensor, I used that data to narrow it down. The manifold pressure was 29 kPa, but the throttle position was only 1.3% open. That didn’t add up, if the throttle was nearly closed, the manifold pressure shouldn’t be that high.
This pointed to an air leak downstream of the throttle body.
Pinpointing the Culprit: Charcoal Canister Solenoid
Charcoal canister solenoids are notorious for failing on Buicks, and they’re located downstream of the throttle body—perfect for causing a lean condition. Here’s how I confirmed it:
- I unplugged the solenoid’s electrical connector and removed the hose from the charcoal canister. Normally, the solenoid shouldn’t have suction when idle, but this one did—meaning it was stuck open.

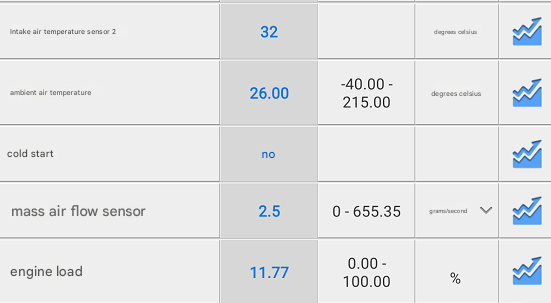

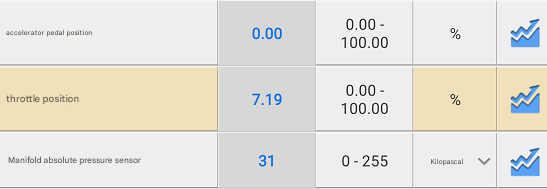

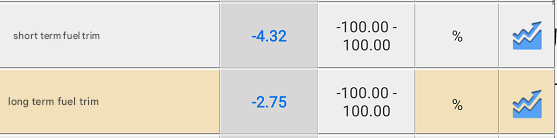

- To verify, I blocked the hose and rechecked the data stream. Immediately, fuel trim adjusted, throttle opening went to 7%, and MAF jumped to 2.5 g/s—all normal. So, the charcoal canister solenoid was the guilty party!
Repair and Conclusion
After replacing the faulty solenoid, the P0171 Buick code cleared, and the LaCrosse ran smoothly again.
This case highlights how interconnected engine sensors and components are.
The computer tried to compensate for the extra air from the solenoid leak by closing the throttle, which is why manifold pressure didn’t spike, clever, but not a long term solution.
This case highlights how interconnected engine sensors and components are.
The computer tried to compensate for the extra air from the solenoid leak by closing the throttle, which is why manifold pressure didn’t spike, clever, but not a long term solution.
Whether you’re dealing with a 2016 Buick Encore P0171, a P0171 Buick Enclave, or even a classic P0171 Buick Lesabre, remember that “system too lean bank 1” often boils down to air leaks, sensor issues, or fuel system problems.
Always start with data stream analysis, it’s the quickest way to pinpoint the issue. Happy wrenching, and keep your Buick running lean (but not too lean)!
Always start with data stream analysis, it’s the quickest way to pinpoint the issue. Happy wrenching, and keep your Buick running lean (but not too lean)!
