Chevy P0101: MAF Sensor Issues a 2014 Cruze Silverado

2026-02-06
If you’re dealing with Chevy Code P0101 whether it’s on a P0101 Chevy Cruze like the one in this case or a P0101 Chevy Silverado this blog shares my journey fixing a stubborn intermittent fault. The 2014 Chevy Cruze kept returning with an illuminated check engine light and varying codes, but the root cause boiled down to a simple yet elusive issue: faulty MAF sensor connector terminals. I’ll break down the diagnostic process, key lessons, and how to resolve Chevy Code P0101 for good.


Fault Symptoms

A 2014 Chevy Cruze with a 1.6L DE engine (16,255 km) came into the shop multiple times with a persistent check engine light. Over four visits, the symptoms evolved:
  • First visit: Check engine light on, electric fan running at high speed.
  • Subsequent visits: Same check engine light, plus occasional performance inconsistencies (though the driver didn’t report major power loss).
  • The vehicle threw different codes each time, but Chevy Code P0101 (Mass Air Flow Sensor Performance) was a recurring issue common in both P0101 Chevy Cruze and P0101 Chevy Silverado models.


The Series of Fault Codes & Initial Diagnostics

Each visit revealed new codes, but all traced back to the Mass Air Flow (MAF) sensor and its integrated Intake Air Temperature (IAT) sensor:

1. First Visit: Code P0113

The initial scan showed P0113 (IAT Sensor Circuit Voltage Too High). According to the repair manual, this code sets when the ECM detects an IAT reading below -60°C for 4+ seconds, triggering the cooling fan.
  • Checks: IAT data read 26°C (normal), no data changes when shaking the wiring. The MAF sensor (which integrates the IAT sensor) connector looked fine, but I treated the terminals with special grease to prevent oxidation common for connectors between the stationary air filter housing and moving engine.

2. Second Visit: Codes P0101 & P0102

The car returned with Chevy Code P0101 and P0102 (MAF Sensor Circuit Frequency Too Low).
  • P0101 sets when the ECM detects the MAF sensor is stuck outside its normal operating range.
  • P0102 sets when the MAF signal drops below 1,827 Hz for 1+ second.

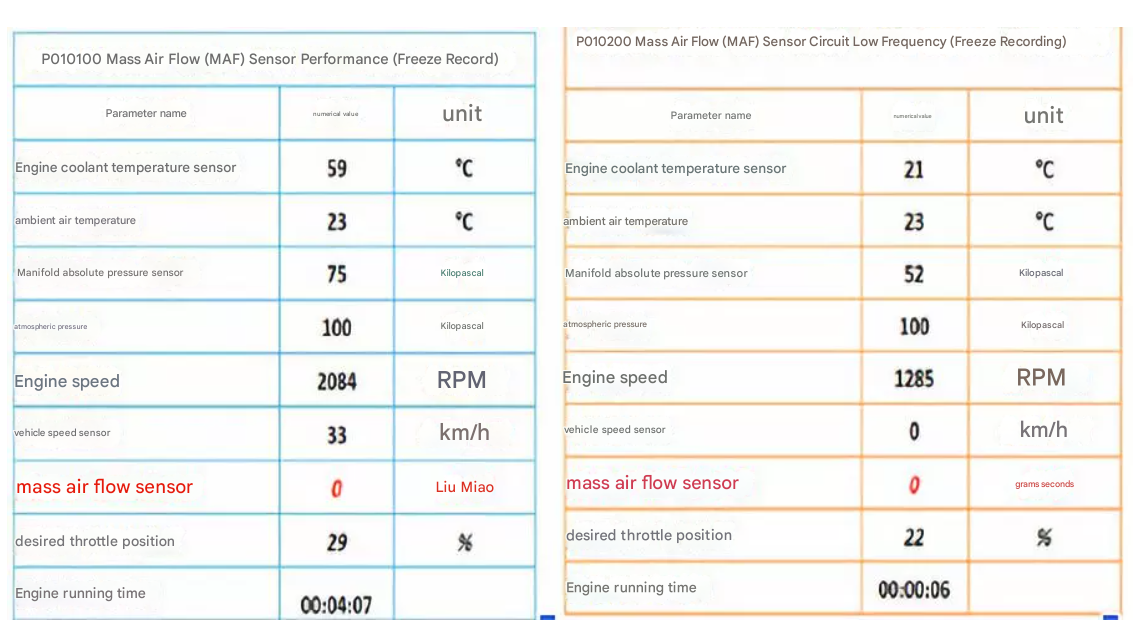

  • Checks: Freeze frame data showed MAF flow at 0 g/s (abnormal), but current data was normal. I inspected the air filter, ECM connector (treated with grease), and replaced the MAF sensor suspecting an intermittent fault common for P0101 Chevy Silverado owners too.
    p0101 chevy cruze​

3. Third Visit: Code P0114

Next, the car came back with P0114 (IAT Sensor Circuit Intermittent Fault), which sets when the IAT reading changes by 10°C in 0.1 seconds for 2+ seconds.
  • Checks: Shook wiring and measured conductivity (normal), no visible damage. I replaced the MAF sensor again to rule out a defective new part.

4. Fourth Visit: Codes P0101 & P0102 (Again)

The final visit confirmed the recurring Chevy Code P0101 and P0102. This time, I used the GDS diagnostic tool’s “data playback” feature to capture real time data as I shook the MAF connector. The line graph revealed instant data drops to 0 g/s at specific angles proof of a loose connection.


Root Cause: Faulty MAF Connector Terminals

Upon inspecting the MAF connector closely, I found two critical issues:
  1. One terminal’s spring clip had detached (the IAT signal terminal).
  2. The MAF signal terminal was significantly looser than other terminals.
These loose terminals caused intermittent “virtual disconnection” that only appeared under specific conditions (e.g., engine vibration at a certain angle). The MAF sensor’s wiring runs between the moving engine and stationary body, making it prone to wear a design quirk I’ve seen in both P0101 Chevy Cruze and P0101 Chevy Silverado models.
Since the terminals were too small to repair, I replaced the affected wiring harness. After replacement, the MAF data stabilized, and all codes cleared permanently.

p0101 chevy silverado​
Key Lessons for Diagnosing Chevy Code P0101

Fixing this stubborn Chevy Code P0101 taught me four valuable lessons that apply to any Chevrolet model:
  1. Intermittent faults need data playback: Instant data drops are easy to miss. Use line graphs or data playback to catch “blink and you’ll miss it” fluctuations critical for P0101 Chevy Cruze and P0101 Chevy Silverado diagnostics.
  2. Inspect connectors thoroughly: Don’t just clean or grease terminals. Check for loose spring clips, bent pins, or excessive play especially in high vibration areas (like between the engine and body).
  3. MAF/IAT integration matters: The IAT sensor is built into the MAF sensor on many Chevys. A single connector issue can trigger multiple codes (P0101, P0102, P0113, P0114).
  4. Don’t rule out wiring early: Even if conductivity tests pass, intermittent loose connections only show up under specific conditions (vibration, temperature changes).


How to Fix Chevy Code P0101

If you’re facing Chevy Code P0101 on your Cruze, Silverado, or another model, follow these steps:
  1. Scan for related codes: Check for P0102, P0113, or P0114 they often accompany P0101 and point to MAF/IAT issues.
  2. Check MAF data: Use a diagnostic tool to monitor MAF flow (should match engine load). Look for sudden drops to 0 g/s.
  3. Inspect the MAF connector: Check for loose terminals, damaged spring clips, or corrosion. Treat terminals with electrical grease if needed.
  4. Test wiring: Shake the MAF harness while monitoring data. Use data playback to catch intermittent drops.
  5. Replace components if needed: If the connector or terminals are damaged, replace the wiring harness. Only replace the MAF sensor if all electrical checks pass.


Final Thoughts on Chevy Code P0101

Chevy Code P0101 is rarely a simple “bad MAF sensor” fix especially when it’s intermittent. Whether you drive a P0101 Chevy Cruze or P0101 Chevy Silverado, the key is to dig beyond the code and inspect the electrical connections. High vibration areas like the MAF sensor harness are prime suspects, and data playback tools are your best ally for catching elusive faults.
If you’re not comfortable with electrical diagnostics, a trusted mechanic can apply these steps to resolve Chevy Code P0101 quickly. Remember, addressing loose connections early prevents repeated trips to the shop and potential engine performance issues.
