How I Fixed P0171 Cadillac System Too Lean Bank 1 po171

2025-12-03

As a veteran mechanic with countless P0171 (system too lean bank 1) fixes in Cadillacs (ATS, Escalade, CTS), I know this issue is tricky, tied to dozens of parts, hard to replicate, and prone to misdiagnoses/repeat visits.


Why P0171 Cadillac (System Too Lean Bank 1) Is So Tricky

First, let’s break down why po171 (system too lean bank 1) is a nightmare for mechanics and Cadillac owners alike. This code means the engine’s air-fuel mixture is too lean (not enough fuel relative to air) on bank 1, and it can stem from dozens of parts across multiple systems:
  • Fuel system: Fuel pump, injectors, fuel lines
  • Intake system: Throttle body, air filter, variable swirl solenoid
  • Emissions system: Canister purge valve, PCV valve, EGR valve
  • Sensors: MAF (Mass Air Flow), MAP (Manifold Absolute Pressure), O2 sensors (A/F and HO2S)
On Cadillacs like the p0171 Cadillac CTS, ATS, or Escalade, blind part swapping (a common quick fix) wastes time and money, especially since po171’s detection criteria are strict, making the code hard to replicate. The PCM only stores p0171 if:
  1. SHRTFT1 (Short Term Fuel Trim) + LONGFT1 (Long Term Fuel Trim) ≥ 30%, AND LONGFT1 ≥ 15% for 10+ seconds; OR
  2. SHRTFT1 stays at 25%+ for 20+ seconds (idle or driving)
Without a way to verify if the mixture is still lean post repair, you might hand the car back to the customer, only for po171 to reappear a week later (sound familiar?). That’s where my method comes in.

My Proven P0171 Diagnostic Method for Cadillacs

The key insight? SHRTFT1 and LONGFT1 update in real time. If a repair works, these values should snap back to normal immediately. Here’s my step-by-step process to test for system too lean bank 1 (po171) in any Cadillac:

The Operation Mode

With the car in Park (P) or Neutral (N) and idling:
  1. Rapidly press the gas pedal to rev the engine up to 5,000 RPM (you can release and re-press a few times to simulate driving demands)
  2. Hold at 5,000 RPM briefly, then fully release to return to idle

What to Monitor

Have a helper use a diagnostic tool to log PCM data during the test, focus on these critical parameters:
p0171 cadillac
system too lean bank 1​
p0171 cadillac escalade​
  • Engine RPM (r/min)
  • Fuel Pulse Width (FUEL PW)
  • MAF (Intake Air Flow)
  • MAP (Intake Manifold Pressure)
  • SHRTFT1 (Short Term Fuel Trim Bank 1)
  • LONGFT1 (Long Term Fuel Trim Bank 1)

Pass/Fail Criteria

If either SHRTFT1 > 15% OR LONGFT1 > 15% during the test, the repair failed, and po171 (system too lean bank 1) is still present. You need to rethink your diagnostic plan.
If both values stay within the normal range (typically ±10%), the issue is resolved.
This method works for all Cadillacs prone to P0171, from the compact Cadillac ATS to the full-size Cadillac Escalade.
It bypasses the PCM’s strict code storing rules to reveal hidden lean conditions.

Real World Test: P0171 Cadillac CTS Fix

I put this method to the test on a Cadillac CTS with 10,600 km, one that had been haunting a customer for months. At 8,800 km, it threw p0171 (system too lean bank 1), and the shop had already replaced fuel, the fuel pump, injectors, and added Skyactiv engine specific fuel additives. Each time, a road test showed no po171, so the car was returned, only for the code to reappear a week later.

Step 1 – Verify the Hidden P0171

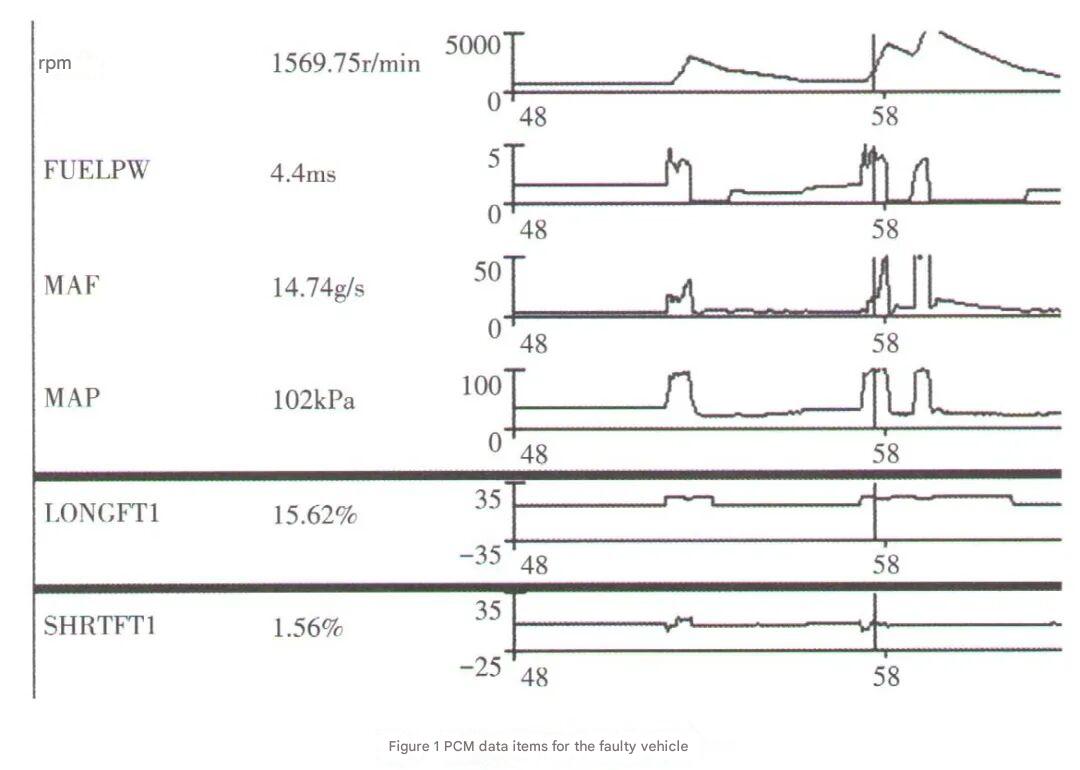

I ran my diagnostic test: revving to 5,000 RPM while logging PCM data. Sure enough, LONGFT1 spiked to 15.62%, proving the lean condition was still there (even without the code storing). This confirmed that the previous repairs missed the mark.

Step 2 – Narrow Down the Fault

Since the fuel system was already ruled out, I focused on the intake system (common culprit for P0171 Cadillac CTS). I swapped all intake components before the intake manifold (air filter, intake hoses, resonator, MAF sensor, MAP sensor) with parts from a known good Cadillac.

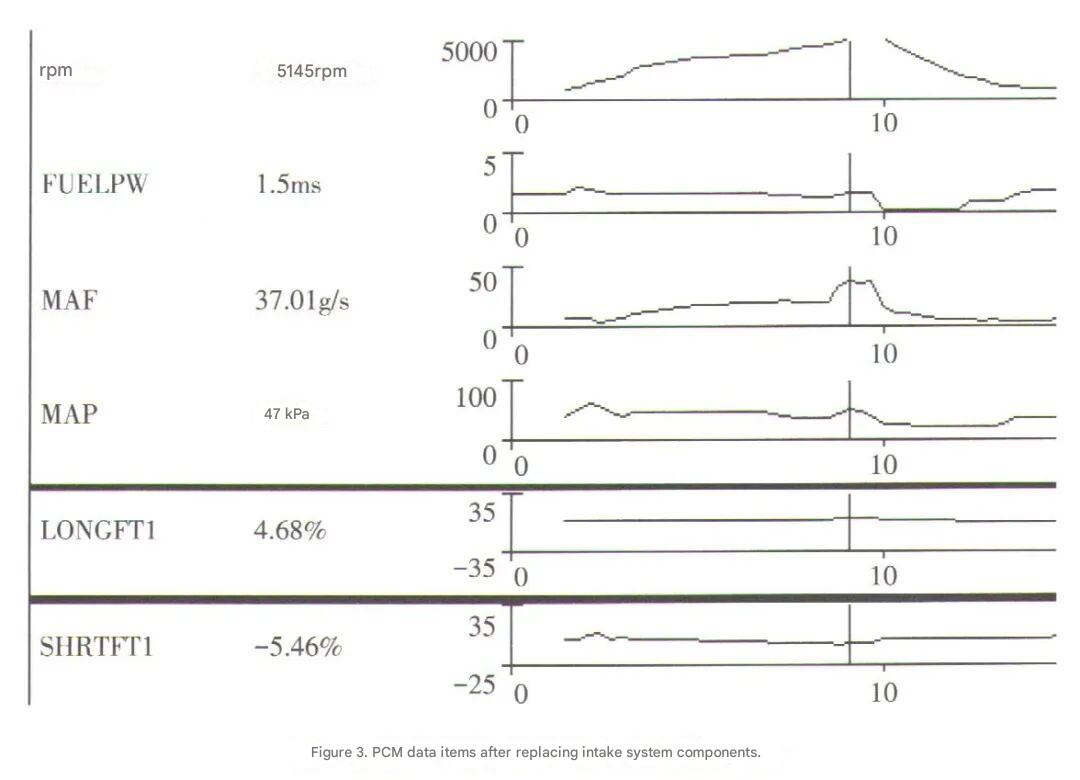

Repeating the test: LONGFT1 maxed at 4.68% and SHRTFT1 dipped to 5.46%, normal values! This meant the fault was in the swapped intake parts.

Step 3 – Pinpoint the Failed Part

I reinstalled the CTS’s original parts one by one, running the test after each swap. The moment I put the original MAF sensor back in, LONGFT1 shot back to 15%+, Po171 (system too lean bank 1) was back. The faulty MAF sensor was the root cause!

Key Takeaways for P0171 Cadillac Repairs

This case proves why relying on "no code = fixed" is dangerous for Po171 (system too lean bank 1) in Cadillacs. Here’s what I’ve learned:
  1. Don’t trust road tests alone: P0171’s strict criteria mean the code won’t store even if the lean condition exists, use SHRTFT1/LONGFT1 data instead.
  2. Target your diagnostics: For P0171 Cadillac ATS, Escalade, or CTS, start with high failure parts like the MAF sensor, PCV valve, or intake leaks before swapping fuel components.
  3. Validate repairs with data: My 5,000 RPM test is fast, easy, and reveals hidden issues, saving time and avoiding repeat visits by using it every time.
Whether you’re working on a P0171 Cadillac CTS, ATS, or Escalade, this method turns guesswork into certainty. Po171 (system too lean bank 1) doesn’t have to be a recurring nightmare, with the right data, you can fix it for good.
Have you battled p0171 in a Cadillac cars?
