P0420 Cadillac Catalyst System Efficiency Below Threshold​

In this blog, I’ll share my recent repair case of a Cadillac with the P0420 fault code (Sometimes it is written as Po420), a common issue many Cadillac owners may encounter, such as those with P0420 Cadillac CTS, P0420 Cadillac SRX, or P0420 Cadillac Escalade.

Initially, the P0420 code (which stands for catalyst system efficiency below threshold) led me to suspect a faulty catalytic converter, but the actual root cause turned out to be an unexpected component failure.

I’ll walk through the fault symptoms, diagnostic process, and the surprising solution that resolved the problem completely.

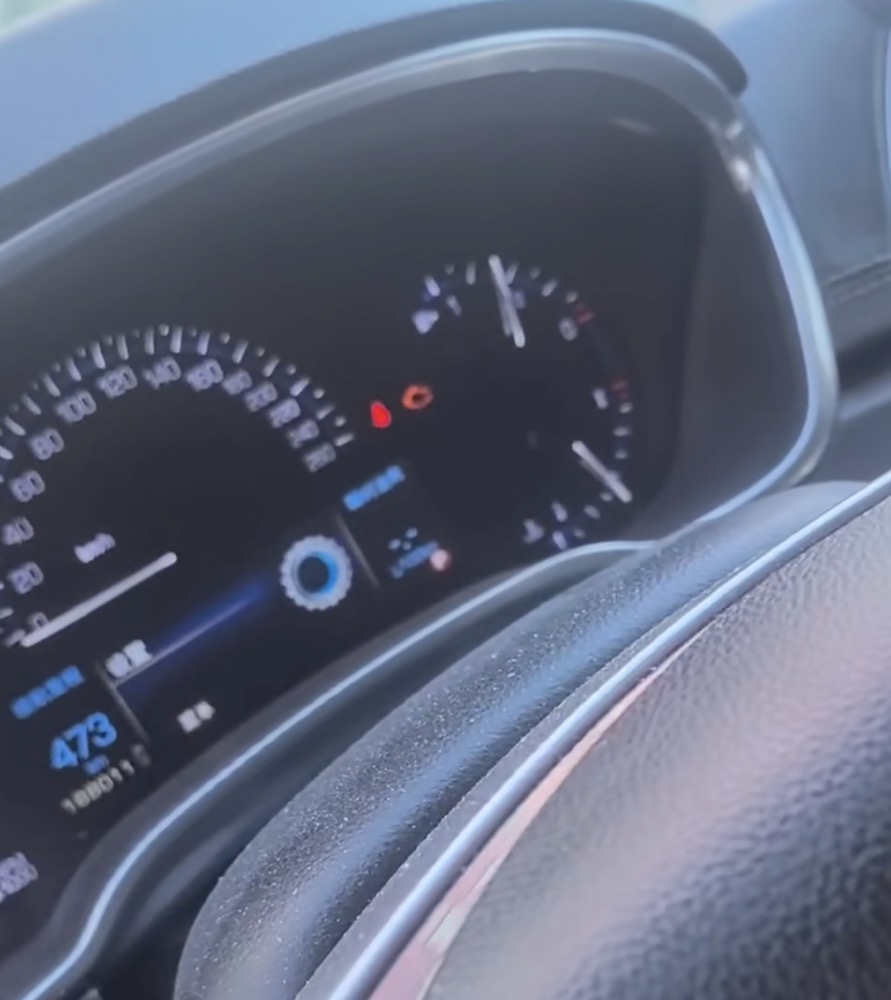

The vehicle in question started normally, but the instrument panel displayed two warnings: "Please service vehicle stability system" and "Please service power steering."

During the test drive, I noticed two key problems: the steering wheel was extremely heavy, the acceleration was weak, and the maximum speed could only reach 20 km/h. When I pressed the accelerator pedal harder to gain more speed, the engine made a "sputtering" sound, and the traction control light on the instrument panel lit up, though the engine didn’t stall.

Interestingly, when the vehicle was stationary or in P (Park) mode, revving the engine by pressing the accelerator pedal resulted in a normal speed response. This conflicting behavior made me realize the issue wasn’t a simple engine power problem.

First, I used GDS (General Diagnostic System) to read the diagnostic trouble codes, and the result was P0420. For those unfamiliar, P0420 is a powertrain fault code, and its core meaning is catalyst system efficiency below threshold.

In other words, the vehicle’s three way catalytic converter fails to effectively convert harmful exhaust gases (such as carbon monoxide, hydrocarbons, and nitrogen oxides) into harmless substances, which would normally lead to excessive exhaust emissions.

Since this Cadillac had been regularly maintained at our 4S store, I was quite familiar with its performance history. Checking the maintenance records, I found that the vehicle had high mileage, was accompanied by an oil burning phenomenon, and had previously shown signs of low catalytic efficiency in Catalyst Bank 1.

However, the owner had delayed replacing the catalytic converter due to the high cost. Given this background, my initial suspicion was that a clogged catalytic converter was causing the power restriction and warning lights, a common cause of P0420 in many Cadillacs, including P0420 Cadillac CTS, P0420 Cadillac SRX, and P0420 Cadillac Escalade.

To verify the catalytic converter suspicion, I removed and inspected it, but surprisingly, no abnormalities were found, there was no clogging or obvious damage. I then reinstalled the catalytic converter, cleared the P0420 fault code, and conducted another test drive.

This time, I continued to monitor the vehicle’s data with GDS, and a new fault code appeared: C0045 5A, which indicates an unreasonable left rear wheel speed sensor signal.

Further checking the vehicle’s driving data confirmed the problem: the left front, right front, and right rear wheel speeds were all around 13 km/h, while the left rear wheel speed was only 3 km/h, a significant discrepancy. This led me to shift my focus from the catalytic converter to the left rear wheel speed sensor.

Upon disassembling the left rear wheel, I discovered that the wheel speed signal plate integrated with the wheel bearing was damaged, this was the real culprit behind all the issues, not the catalytic converter associated with the initial P0420 code.

Since the damaged wheel speed signal plate was integrated with the wheel bearing, I recommended replacing the entire left rear wheel bearing for the owner.

After the replacement, I conducted a test drive again: the warning lights on the instrument panel disappeared, the steering wheel returned to normal (no longer heavy), the acceleration was smooth, and the vehicle could reach normal speeds without any sputtering sounds. I also used GDS to recheck, and no fault codes (including P0420) appeared. The repair was a complete success.

After resolving the problem, I researched to understand why a left rear wheel speed sensor failure would cause such widespread issues, including the symptoms that initially pointed to P0420.

This Cadillac is equipped with an electronic stability program (ESP) and a traction control system (TCS). During driving, these systems rely on accurate wheel speed data from all four wheels to maintain vehicle stability.

When the left rear wheel speed sensor failed, the system detected a huge discrepancy between the left rear wheel speed and the other three wheels. When the vehicle speed exceeded 20 km/h, the stability system judged that the speed difference was beyond the safe normal range.

To prevent the vehicle from rolling over or losing control, the system automatically cuts off the engine’s fuel supply, restricting power output. This explains the weak acceleration, maximum speed limit of 20 km/h, and the stability system warning lights. The initial P0420 code, while related to the vehicle’s emission system history, was not the direct cause of the driving issues in this case.

This case reminds me that when dealing with P0420 Cadillac issues, we shouldn’t jump to conclusions that the catalytic converter is the only cause. While P0420 (catalyst system efficiency below threshold) typically points to catalytic converter problems, common in models like P0420 Cadillac CTS, P0420 Cadillac SRX, and P0420 Cadillac Escalade, other system failures (such as wheel speed sensor issues) can trigger similar symptoms or even coexist with emission related codes. Always conduct a comprehensive diagnosis, check all relevant data, and avoid misplacing parts due to premature assumptions.
