As a Buick technician who’s tackled countless P0496 Buick codes (and knows how frustrating po496 evap emissions system high purge flow problems can be), I recently faced a unique challenge: a 2017 Buick LaCrosse with 69,588 KM
The Symptoms – A Triple Whammy of Buick Electrical Failures
When the owner brought in their LaCrosse, they listed three critical issues that popped up after noticing sunroof leaks:

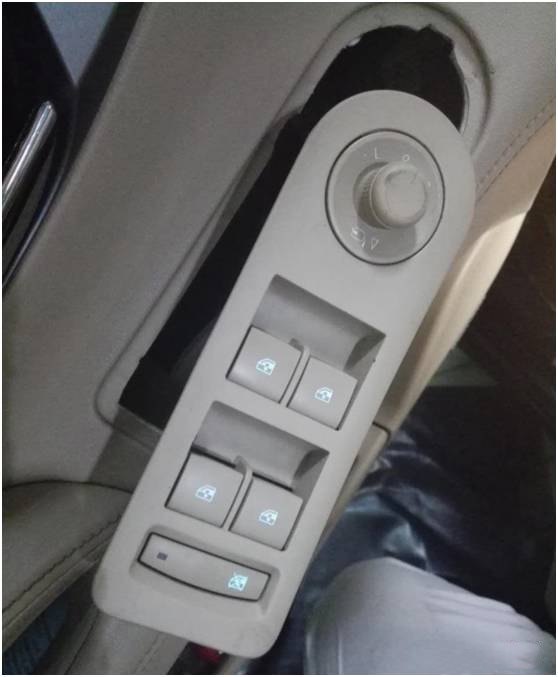

- The driver’s side window switch (S79D) couldn’t control the other windows
- The left power side mirror was unresponsive
- The sunroof refused to open
While these symptoms don’t scream p0496 Buick (which typically triggers a "evap emissions system high purge flow" warning), they’re a reminder that Buicks, whether it’s a p0496 Buick Enclave or a LaCrosse, can have cascading failures from seemingly unrelated issues.
The owner mentioned they’d dealt with minor leaks before, but this was the first time electrical components failed en masse.
The owner mentioned they’d dealt with minor leaks before, but this was the first time electrical components failed en masse.
Pulling DTCs – LIN Bus Errors and Clues Beyond P0496

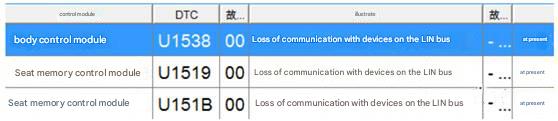

I hooked up the MDI scanner (standard for Buick diagnostics, even when chasing p0496) and pulled three key DTCs:

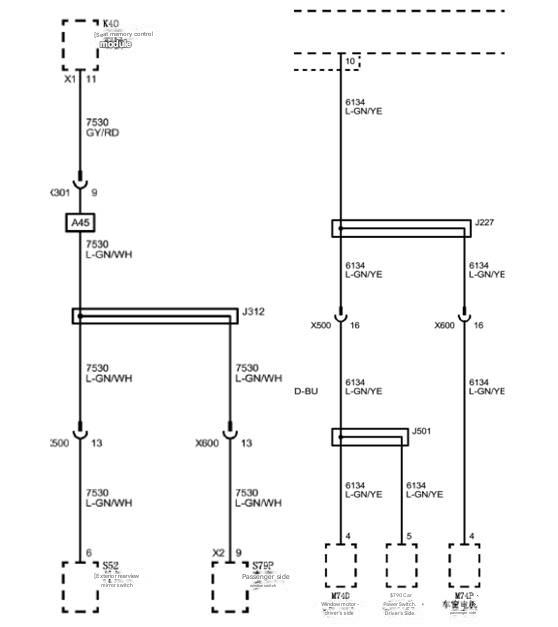

- U1538 00 (Body Control Module K9): Loss of communication with driver’s window switch (S79D) via LIN Bus 3
- U1519 00 (Seat Memory Module K40): Loss of communication with side mirror switch (S52) via LIN Bus 1
- U151B 00 (Seat Memory Module K40): Loss of communication with passenger window switch (S79P) via LIN Bus 1
No P0496 codes here, but these LIN Bus errors told me electrical connectivity was the culprit, common in water-damaged Buicks, just like how po496 can stem from damaged EVAP hoses.
I remembered that p0496 Buick Encore and Enclave models often have wiring issues from moisture, so I immediately suspected the sunroof leak was behind the LIN Bus failures.
I remembered that p0496 Buick Encore and Enclave models often have wiring issues from moisture, so I immediately suspected the sunroof leak was behind the LIN Bus failures.
Circuit Testing – Following the Wiring Trail (and Water Damage)

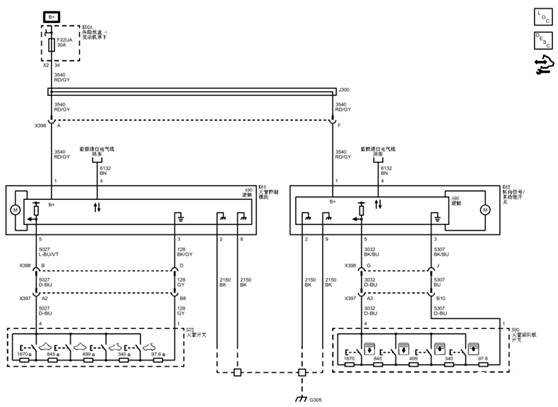

I started with the LIN Bus circuit tests per the Buick service manual, steps that apply to any electrical issue, from p0496 to window failures:
1. Turned off the ignition and disconnected the non-communicating devices (window switches, mirror, sunroof module)
2. Tested ground circuits: All showed resistance under 10 ohms (normal)

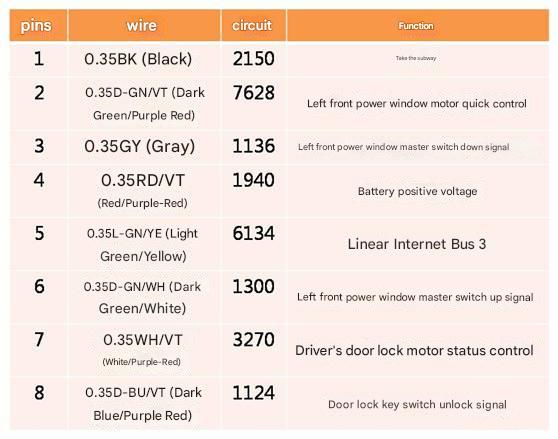

3. Checked B+ and ignition circuits with a test light: Most lit up, but the driver’s window switch (S79D) had 0V at pin 4 (should be 12V)
4. Measured LIN Bus voltage: 2-12V (normal), ruling out main module failure

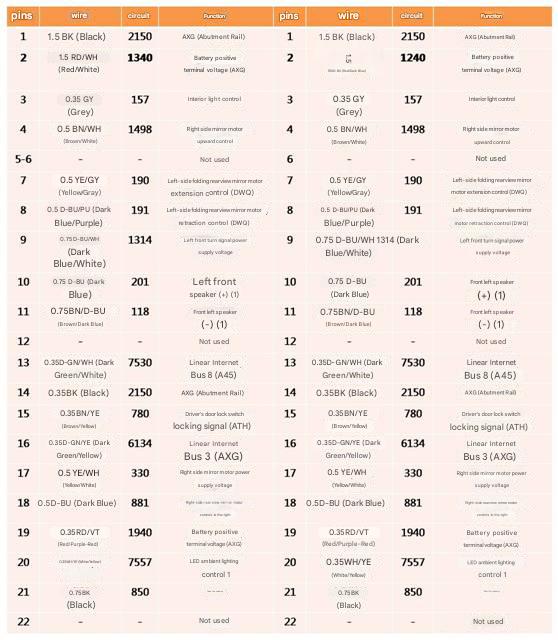

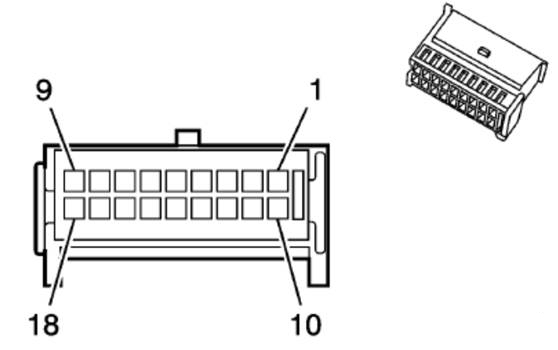

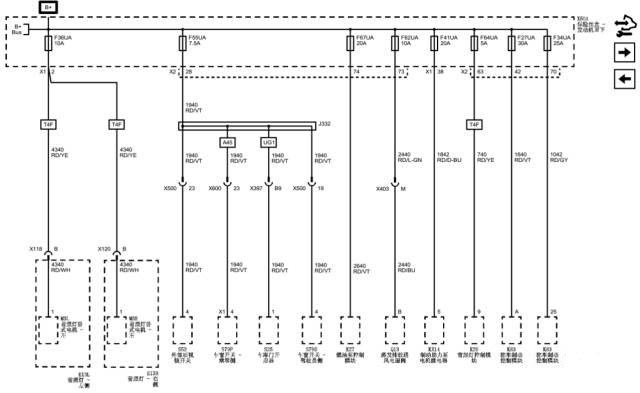

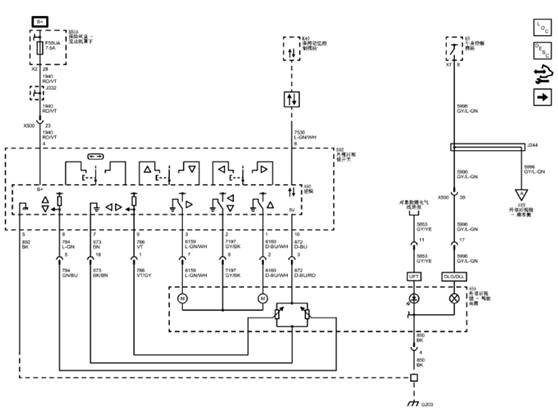

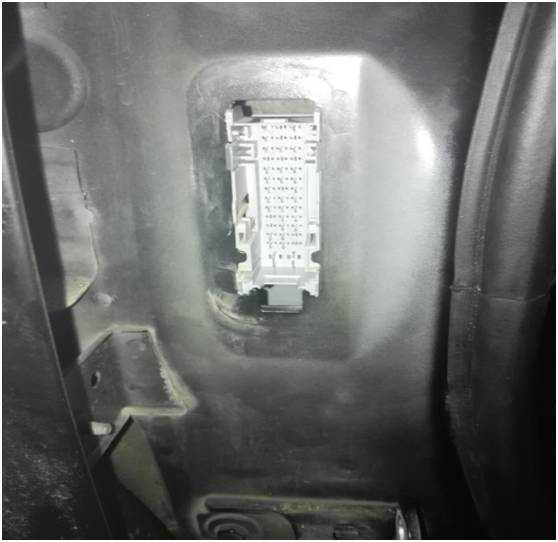

5.Traced the S79D’s power source to fuse F55UA, fuse was good, but voltage dropped to 0V at the door connector X500 pin 19

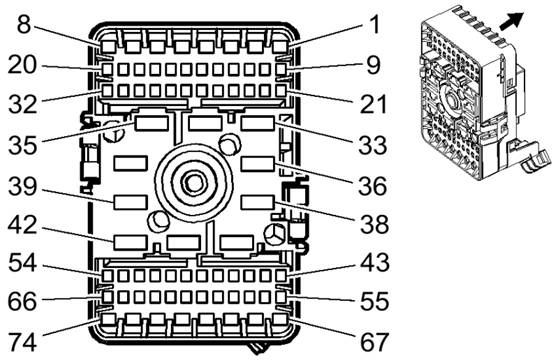

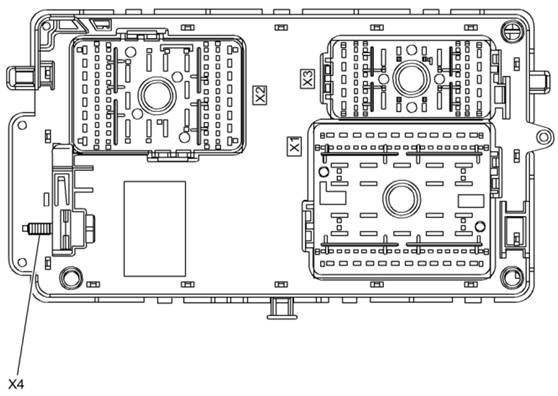

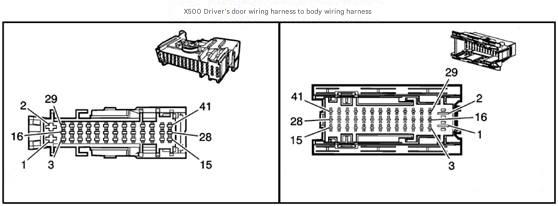

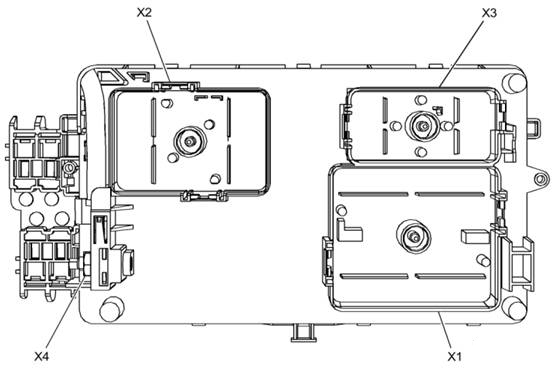

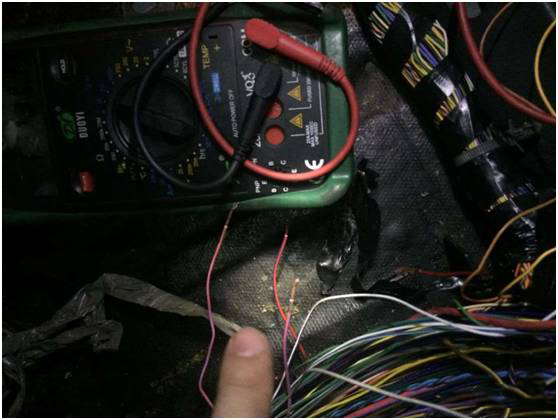

6. Tested wiring between the fuse box (X50A X2 pin 28) and door connector (X500 pin 19): Infinite resistance (abnormal, should be 0.05Ω)

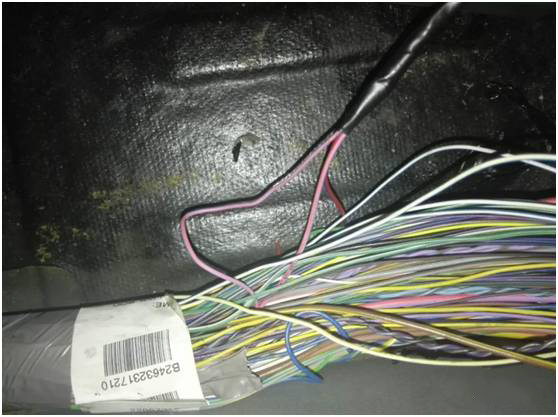

The smoking gun? J332 wiring node under the carpet, soaked with water from the sunroof leak, corroded until the circuit broke.
This is why I always check for moisture first, even when diagnosing p0496 Buick issues (water can damage evap purge valves too!).
Fixing Each Failure – From Corroded Wires to Failed Modules
Power Window Restoration

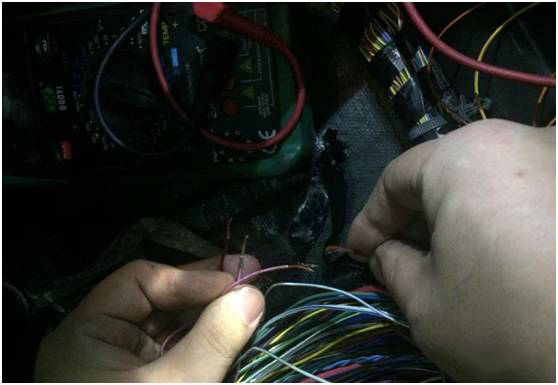

After cleaning the J332 node, re-wrapping the corroded wires, and drying the carpet, I cleared the DTCs. The U1538 code vanished, and the power windows worked after re-learning their positions. Remember: Even if you’re dealing with p0496 Buick Lacrosse issues, water damage can mimic or worsen electrical faults, always inspect for leaks!
Side Mirror Repair

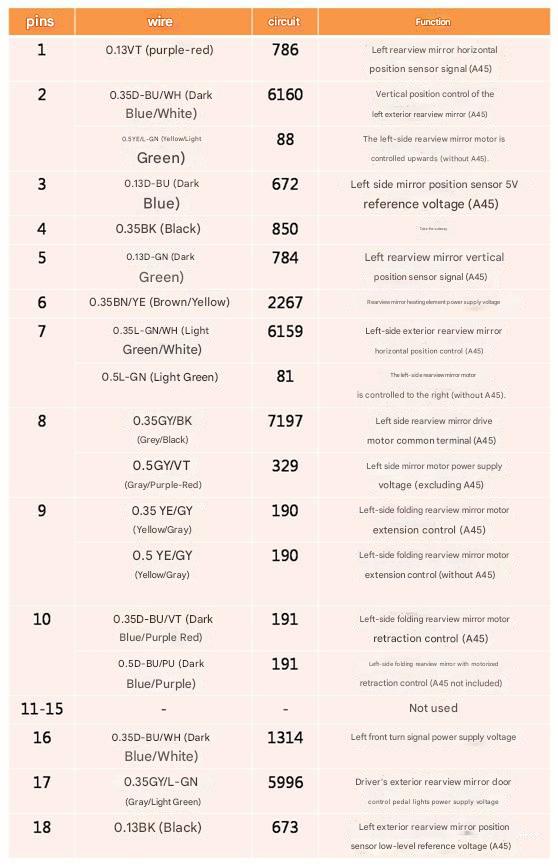

For the unresponsive left mirror, I tested the A9A connector: 12V at pins 7/8 and 2/8 (normal power). The mirror itself was faulty, common after water exposure.
I swapped it with a new OEM unit, and the mirror’s up/down/left/right functions were back instantly.
Sunroof Fix (and Stopping the Leak)

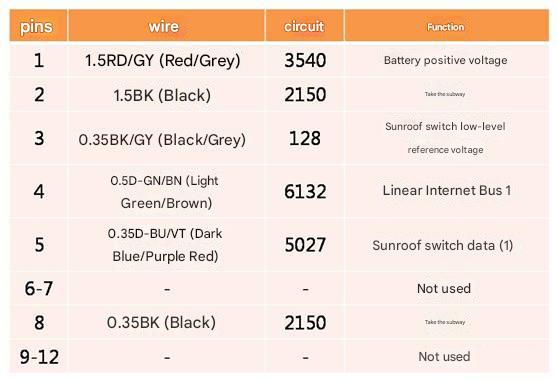

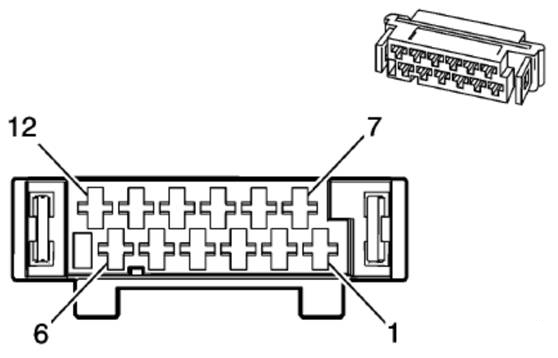

The sunroof module (K61) had good power, ground, and signals, so I replaced the control module and did a reset.
But the real fix was unclogging the sunroof drains, without this, the leak would’ve ruined the new parts (just like ignoring a cracked evap hose can bring back p0496).
I flushed the drains, tested with a pressure washer, and confirmed no more water pooling.
I flushed the drains, tested with a pressure washer, and confirmed no more water pooling.
Why This Matters for P0496 Buick Owners
While this repair didn’t involve p0496 (evap emissions system high purge flow), it shares key lessons with anyone dealing with po496 in Buicks like the Enclave, Encore, or LaCrosse:
- Moisture is a silent killer: Water damage can cause unrelated systems to fail, just like how a leaky evap hose triggers p0496
- Follow DTCs, but don’t stop there: LIN Bus codes pointed to communication issues, but the root was corrosion (similar to how p0496 can stem from wiring, not just the purge valve)
- Fix the cause, not just symptoms: Unclogging the sunroof drain prevented future failures, for p0496, this means repairing cracked hoses or faulty purge valves, not just clearing codes
Final Thoughts
This Buick LaCrosse’s triple failure was a reminder that even complex electrical issues boil down to systematic testing.
Whether you’re chasing p0496 Buick codes or dealing with dead windows/mirrors, patience and following the wiring (and water!) trail pays off.
For p0496 Buick Encore or Enclave owners, remember: evap system high purge flow often links to worn valves or damaged hoses, inspect those first, and don’t overlook moisture damage!
Have you dealt with p0496 or electrical failures in your Buick?
