After 246,000 miles, I tackled a frustrating issue with a 2004 Buick Regal 2.5L fitted with the 4T65E transmission, one that’s all too familiar to anyone dealing with p1811 Buick codes, 4t65 transmission problems, or 4t65e transmission problems.
The Warning Signs – 4T65E Transmission Problems in Action
The symptoms were classic for 4t65 transmission problems: intermittent slipping during upshifts (2-3 and 3-4) that escalated to complete loss of drive when the engine warmed up.
Oddly, there were no stored fault codes initially, though the owner mentioned a past P1811 Buick code (the notorious "Maximum Adapt and Long Shift" error).
When I checked the transmission fluid, it was black and contaminated with friction material debris, red flags that immediately pointed to internal damage.
This isn’t just a 4t65e transmission problem; I’ve seen similar issues in p1811 Buick Rendezvous and p1811 Buick Lesabre models with high mileage.
Oddly, there were no stored fault codes initially, though the owner mentioned a past P1811 Buick code (the notorious "Maximum Adapt and Long Shift" error).
When I checked the transmission fluid, it was black and contaminated with friction material debris, red flags that immediately pointed to internal damage.
This isn’t just a 4t65e transmission problem; I’ve seen similar issues in p1811 Buick Rendezvous and p1811 Buick Lesabre models with high mileage.
Diagnostic Deep Dive – Beyond the P1811 Buick Code
Since the scanner showed no current codes, I relied on physical inspection.
Removing the transmission pan revealed a nightmare: the oil filter was clogged with burned friction pad residue and aluminum shavings, and the input drum and 2nd gear hub friction plates/steel plates were severely burned. The kicker? A broken spring in the integral accumulator.
Further investigation showed the spring was the wrong size, thicker than OEM but with a smaller inner diameter, causing uneven pressure on the accumulator piston (which had irregular scratches from the misfit spring). This explained the initial P1811 Buick code the owner mentioned: a previous mechanic had added the oversized spring to "fix" P1811, a common but flawed workaround for 4t65 transmission problems.
Removing the transmission pan revealed a nightmare: the oil filter was clogged with burned friction pad residue and aluminum shavings, and the input drum and 2nd gear hub friction plates/steel plates were severely burned. The kicker? A broken spring in the integral accumulator.
Further investigation showed the spring was the wrong size, thicker than OEM but with a smaller inner diameter, causing uneven pressure on the accumulator piston (which had irregular scratches from the misfit spring). This explained the initial P1811 Buick code the owner mentioned: a previous mechanic had added the oversized spring to "fix" P1811, a common but flawed workaround for 4t65 transmission problems.
Unraveling the Root Cause – 4T65E Transmission Problems & the AFL Valve
The core issue boiled down to two critical failures, both linked to 4t65e transmission problems. First, the incorrect accumulator spring destroyed the accumulator’s ability to stabilize hydraulic pressure, leading to harsh shifts and burned friction plates.

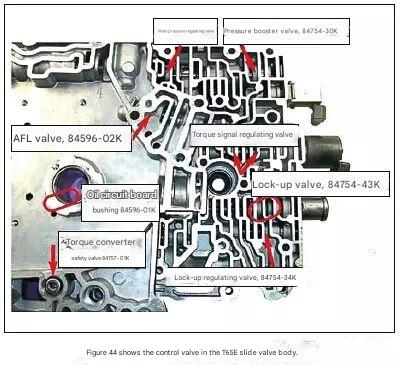

Second, the real culprit behind the P1811 Buick code: a worn AFL Valve (Actuator Feed Limit Valve). This valve regulates main line pressure for solenoids and shift circuits, and its high operating frequency makes it prone to wear in high mileage 4T65 transmissions. When the AFL Valve leaks, it causes reduced torque signal pressure, long shift times, and TCC lockup slip, all trigger P1811. I’ve seen this in countless 4t65 transmission problems, from Buick Regals to p1811 Buick Lesabre and p1811 Buick Rendezvous models.
Second, the real culprit behind the P1811 Buick code: a worn AFL Valve (Actuator Feed Limit Valve). This valve regulates main line pressure for solenoids and shift circuits, and its high operating frequency makes it prone to wear in high mileage 4T65 transmissions. When the AFL Valve leaks, it causes reduced torque signal pressure, long shift times, and TCC lockup slip, all trigger P1811. I’ve seen this in countless 4t65 transmission problems, from Buick Regals to p1811 Buick Lesabre and p1811 Buick Rendezvous models.
The Correct Fix for P1811 Buick & 4T65E Transmission Problems
The previous "quick fix" of adding an oversized spring was a band aid that made things worse. The proper solution required:
- Replacing the integral accumulator (piston, spring, and guide rod) with OEM spec parts
- Repairing the valve body and replacing the worn AFL Valve (alternatively, replacing the entire valve plate or using the F-84596-TL repair kit for the AFL Valve)
- Installing new friction plates and cleaning all debris from the transmission
This addressed the root cause of the 4t65e transmission problems, unlike the improper spring modification that only masked the P1811 Buick code temporarily.
Key Takeaways for P1811 Buick & 4T65 Transmission Problems
After resolving this case, I want to emphasize a few critical lessons for anyone dealing with p1811 Buick, 4t65 transmission problems, or 4t65e transmission problems:
- Don’t ignore the AFL Valve: It’s a common failure point in 4T65 transmissions, even if scanners hint at solenoid issues.
- Avoid quick fixes: Adding springs to accumulators doesn’t solve the underlying pressure leaks, always address worn valves or valve bodies.
- Inspect springs thoroughly: OEM specifications matter, mismatched springs cause more damage than good.
- P1811 isn’t just a solenoid code: It often signals AFL Valve wear, TCC slip, or pressure regulation issues, especially in high mileage Buicks like the Regal, Lesabre, and Rendezvous.
If you’re facing p1811 Buick codes or 4t65e transmission problems, don’t cut corners, address the root cause to save time and money in the long run.
